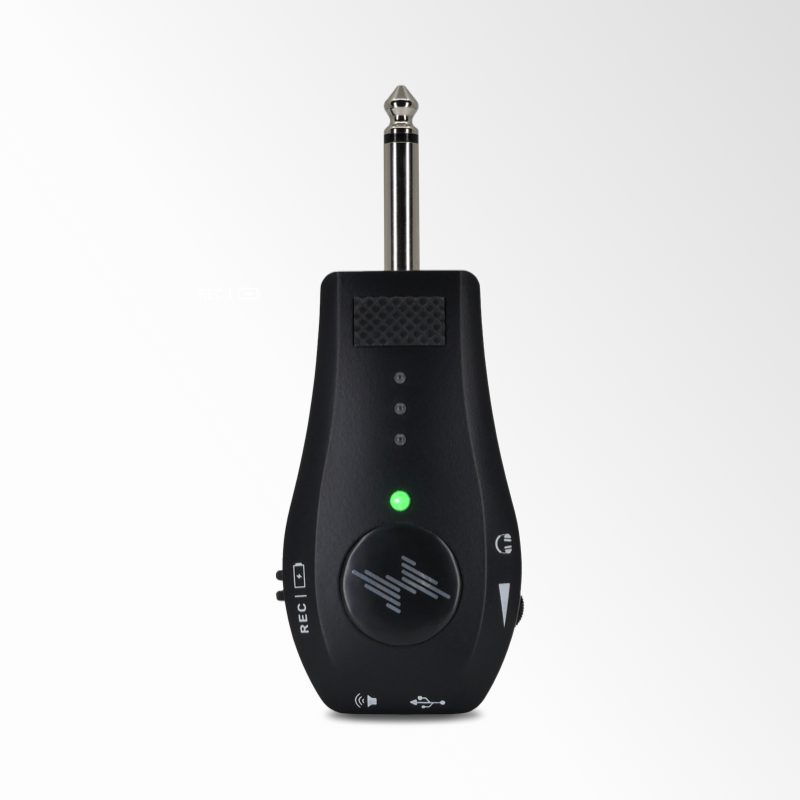

AR1 Key Chain Recorder (compatible with ALL iOS devices)

AR1 Recorder Specs① 1/4” (6.3mm) signal plugConnect to “Output” of all ISOLO receivers② Power switch◎Push to Rec side to activate AR1, push to the opposite side to turn off ◎To recharge AR1, use USB power cable while AR1 is OFF③ 1/8” (3.5mm) audio outputUse 1/8” (3.5mm) TRS cable to send signal to speakers or mixers④ Micro USB port◎When AR1 is on, this is where you connect your device for recording ◎When AR1 is off, this is the port for recharging⑤ Headphone volume controlRotate to adjust headphone volume. This WILL NOT change the volume of your recording.⑥ Headphone outputUse 1/8” (3.5mm) TRS cable to connect with your headphones⑦ Battery status indicatorThe color will change according to the battery status. ◎Blue: battery > 80% ◎Green: battery between 80%~30% ◎Red: battery less than 30%⑧ Signal indicatorThis indicator provides visual aid to adjust your balance. �� or below: Signal is too weak, need to increase ISOLO master volume ���� ~ ������: Signal is OK! Can adjust a little to your preference. ��: Signal is quite strong, need to take care. ������: Signal is too strong, need to lower ISOLO master volume to avoid clipping.AR1 Recorder InformationDimensions105mm(L)*40mm(W)*21mm(H) ±2mmWeight46g ± 2gPower supplyBuilt-in rechargeable batteryBattery lifeRuns up for 5 hours after a 2 hour complete recharge. Recharge through USB port.Audio format24bit, 48KHzSignal Input1/4” (6.3mm) TS jackHeadphone output1/8” (3.5mm) TRS, maximum output 125mWAudio output1/8” (3.5mm) TRSCompatibility◎iOS: iOS 12 and above ◎PC & Mac ◎Android: Above Android 9.0 and able to activate OTG
