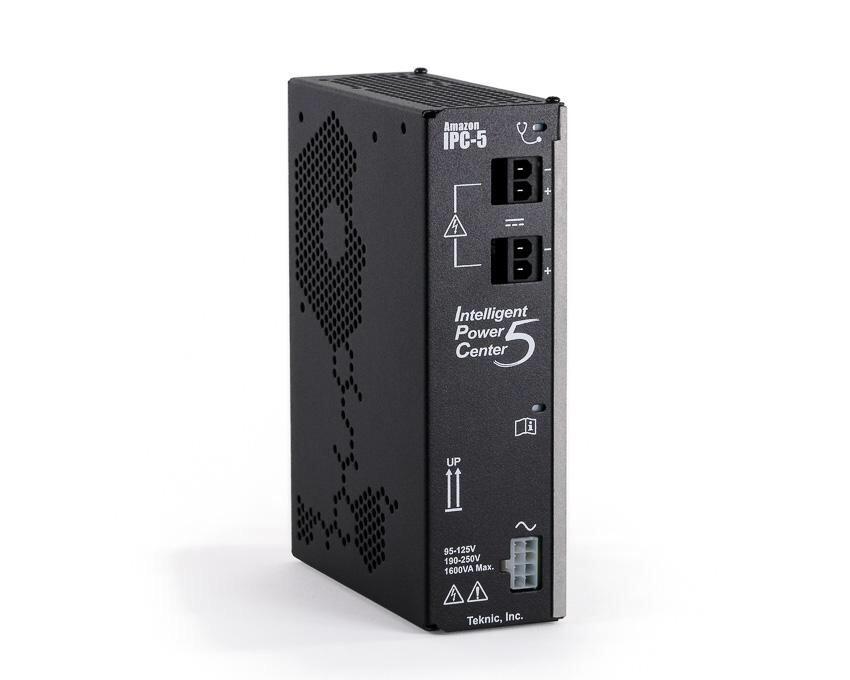

Teknic ClearPath – IPC-5 350/500 Watt DC Power Supply

This product is an imported item. Due to the uncertainty of shipping costs only domestic shipping costs are charged. INTERNATIONAL SHIPPING IS NOT INCLUDED. EMAIL for an Official Quote. Low Voltage (75 VDC) “Intelligent Power Center” power supply optimized for motor drive bus power. Compatible with Clear Path NEMA 23 and 34 integrated servos, and Eclipse and Meridian 2xx-5xx series products. tronics with the motor gives you a perfectly matched motor and drive, a more compact solution, requires no cable between motor and drive, is faster to install, and a lower overall system cost. IPC-5 Power Supply 75 VDC output; 350 Watts continuous power (500 Watts with fan cooling) Compact size: 7.20” x 5.20” x 2.26” (mm: 183 x 132 x 57.3) Aluminum, perforated cover fully encloses the supply (UL “finger safe”) 53 joules of capacitive energy storage for lossless storage of regenerated energy and reduced output ripple 20 watt excess regenerated energy absorption Over-voltage and over-current detection and protection (designed to not false trip on the high peak loads of a motion system) Soft-start, in-rush current limiting to prevent accidentally tripping circuit breakers upon machine power up Reverse-polarity protection prevents damage to your motor drive if you accidentally reverse input power polarity Short-circuit protection Built-in EMI filtering Automatic dump of bus power quickly brings output voltage to safe levels after power down Wide AC input range: 95-125/190-250VAC; 50-60Hz UL, CE 3 year warranty NOTE: Price excludes import duties. (E&OE)
