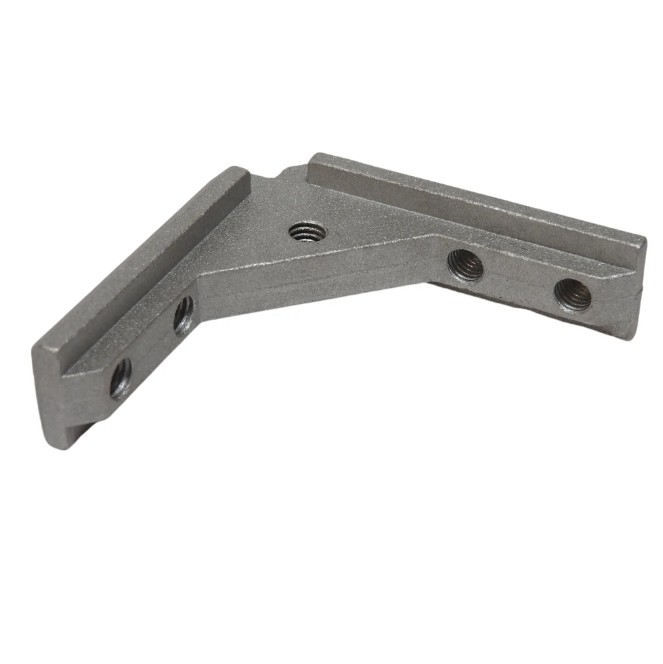

Description 90 Degree Inside Corner Connector V2: Advanced Corner Solutions Discover the upgraded version of our inside corner connector, specifically designed for enhanced functionality and convenience. The 90 Degree Inside Corner Connector V2, crafted from robust cast aluminium, effortlessly integrates with 40 Series T-Slot Profiles. This version comes with a unique material in the corner featuring an extra M6 hole, expanding your attachment options from the side. Its larger dimensions provide a stronger, more stable connection, improving the structural integrity of your assemblies. Features Enhanced Attachment: The additional M6 hole in the corner of the connector facilitates more versatile attachment solutions. Robust Construction: Its cast aluminium build ensures long-term durability and a secure connection. Precise 90-Degree Connections: Like its predecessor, this connector guarantees precise right-angle connections, vital for geometric accuracy in your projects. Includes 4 Grub Screws for tightening the bracket, but no fasteners for the M6 support hole. Why Choose This Connector? Increased Versatility: The extra hole offers more attachment options, adapting to your unique project needs. Easy Installation: The intuitive design ensures a quick and straightforward assembly process. Reliable Performance: Designed for durability, it promises a long-lasting, robust connection. Specifications Material: Cast Aluminium Compatibility: 40 Series T-Slot Profiles Weight: 41g Dimensions: 63.5×63.5x16mm Drawings A B C D E kg 63.5mm 16mm M6 M6 8.1mm 0.041 Dive into a realm of enhanced structural possibilities with the 90 Degree Inside Corner Connector V2, a perfect blend of precision, durability, and versatility. What makes T-Slots such an easy assembly task? Building frames out of T-Slot extrusions is easy because they eliminate the need for specialized tools or welding, simplifying the assembly process. Building frames using T-Slot Linear Rail will require; 40 Series T-Slot Extrusions: These are the main structural components, usually made of aluminium, with slots along their lengths that allow you to easily connect various parts and accessories. 40 Series Brackets and Connectors: These are specialized components designed to fit into the T-Slot extrusions and secure them together at various angles. They include corner brackets, T-nuts, L-shaped brackets, and other connectors. Fasteners: Bolts, screws, and nuts are required to attach the brackets and connectors to the T-Slot extrusions securely. Tools: Basic hand tools like wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths. Related
