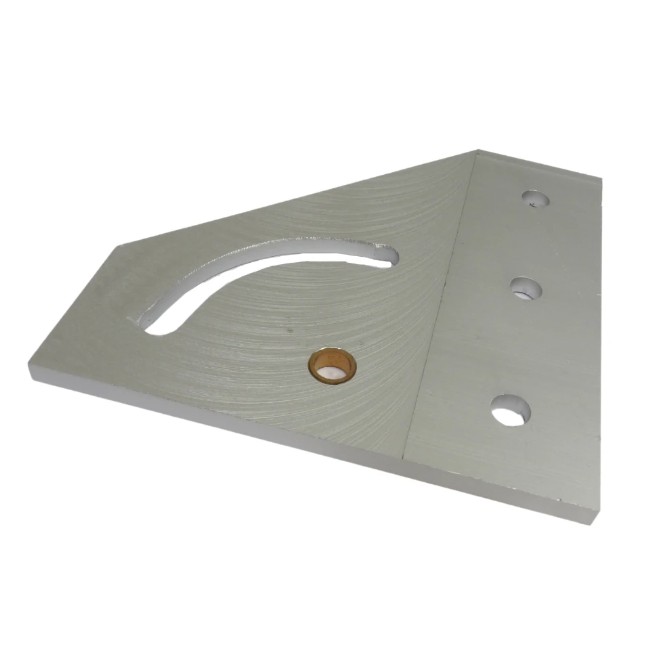

Description 90-Degree Right Pivot Plate: Achieve Dynamic Right Angle Connections Unleash the potential of dynamic angular connections with the 90-Degree Right Pivot Plate. Crafted from durable aluminium, this pivot plate is meticulously designed to provide a robust pivot point for 40 Series T-Slot Profiles. The permanently lubricated bronze bushings act as high-strength pivot points, ensuring smooth and reliable pivotal motion. Embrace the ease and precision the 90-degree Right Pivot Plate brings to your assembly endeavours, and watch your creative visions translate into tangible structures with enhanced functionality and aesthetic appeal. The right-hand orientation of this pivot plate complements its right-hand counterpart, enabling a harmonious integration in diverse configurations. Features Robust Pivot Points: The bronze bushings ensure a sturdy and smooth pivoting action. 90-Degree Axial Motion: Provides flexibility in creating right-angle connections that can be folded down or adjusted as needed. Aluminium Construction: Lightweight yet durable, designed for long-term use. Why Choose This Connecting Plate? Versatility: The availability of both left and right-hand versions allows for a wide range of applications. Ease of Assembly: Simplifies the creation of pivotal right-angle connections, enhancing the assembly experience. Reliable Performance: Engineered to provide a dependable solution for your pivotal connection needs. Specifications Material: Aluminium 6063-T5 Compatibility: 40 Series T-Slot Profiles Weight: 155g Dimensions: 120x120x6mm Drawings A B C D E F G H kg 120mm 40mm 20mm 8.3mm 10mm 8.3mm 5.36mm 6mm 0.155 Delve into a realm of structural ingenuity with the 90-Degree Right Pivot Plate. This pivot plate is a gateway to a myriad of angular connection possibilities, embodying a blend of form, function, and flexibility. Its design caters to a spectrum of applications, whether you are engineering adjustable frames, constructing modular furniture, or embarking on innovative projects that demand a fusion of stability and mobility at right-angle joints. What makes T-Slots such an easy assembly task? Constructing frames from T-Slot extrusions is straightforward as they eliminate the need for specialized tools or welding, thereby simplifying the assembly process. To build frames using T-Slot Linear Rail, you will require: 40 Series T-Slot Extrusions: These form the main structural components, usually crafted from aluminium, with slots along their lengths for easy connection of various parts and accessories. Additionally, their robustness ensures they hold up well over time. 40 Series Brackets and Connectors: These specialized components fit snugly into the T-Slot extrusions, securing them together at various angles. The range includes corner brackets, T-nuts, L-shaped brackets, and other connectors. Besides, they are easy to install and adjust as needed. Fasteners: Utilize Bolts, screws, and nuts to securely attach the brackets and connectors to the T-Slot extrusions. Furthermore, their variety allows for flexible assembly solutions. Tools: Basic hand tools such as wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths. Related
