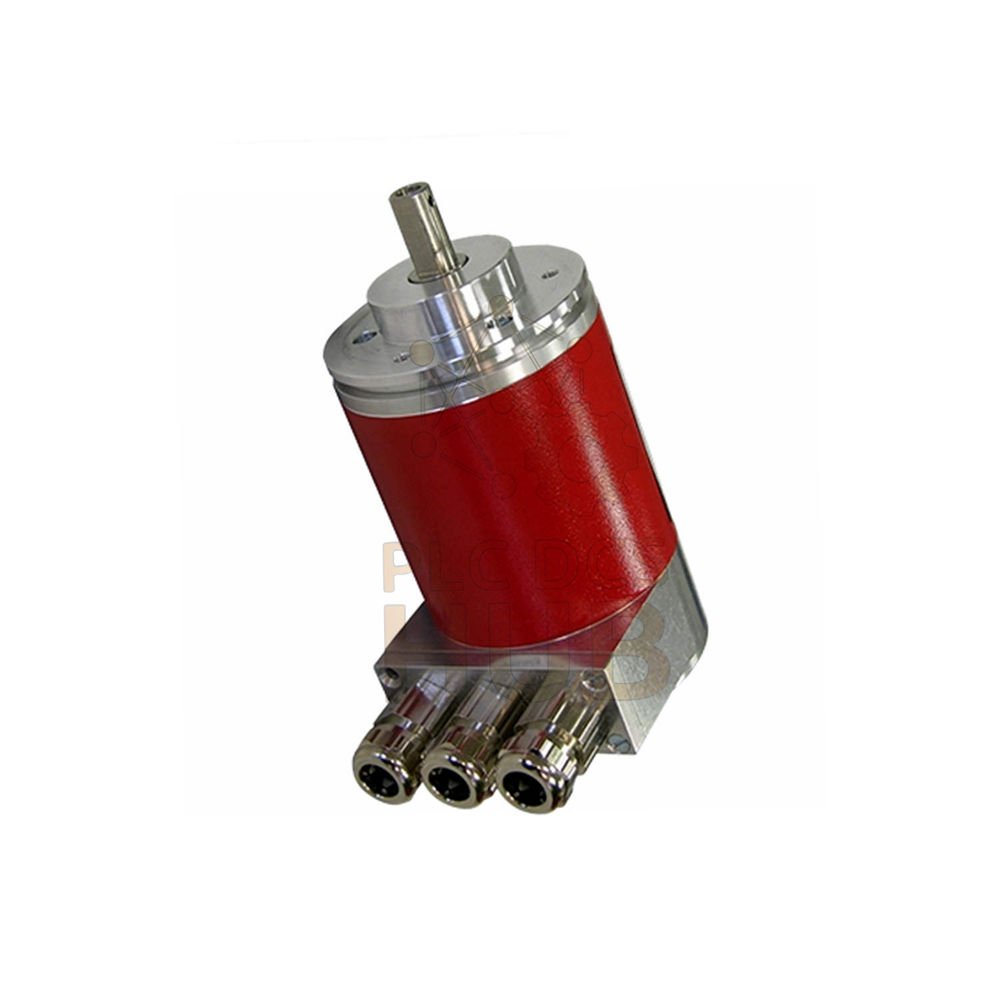

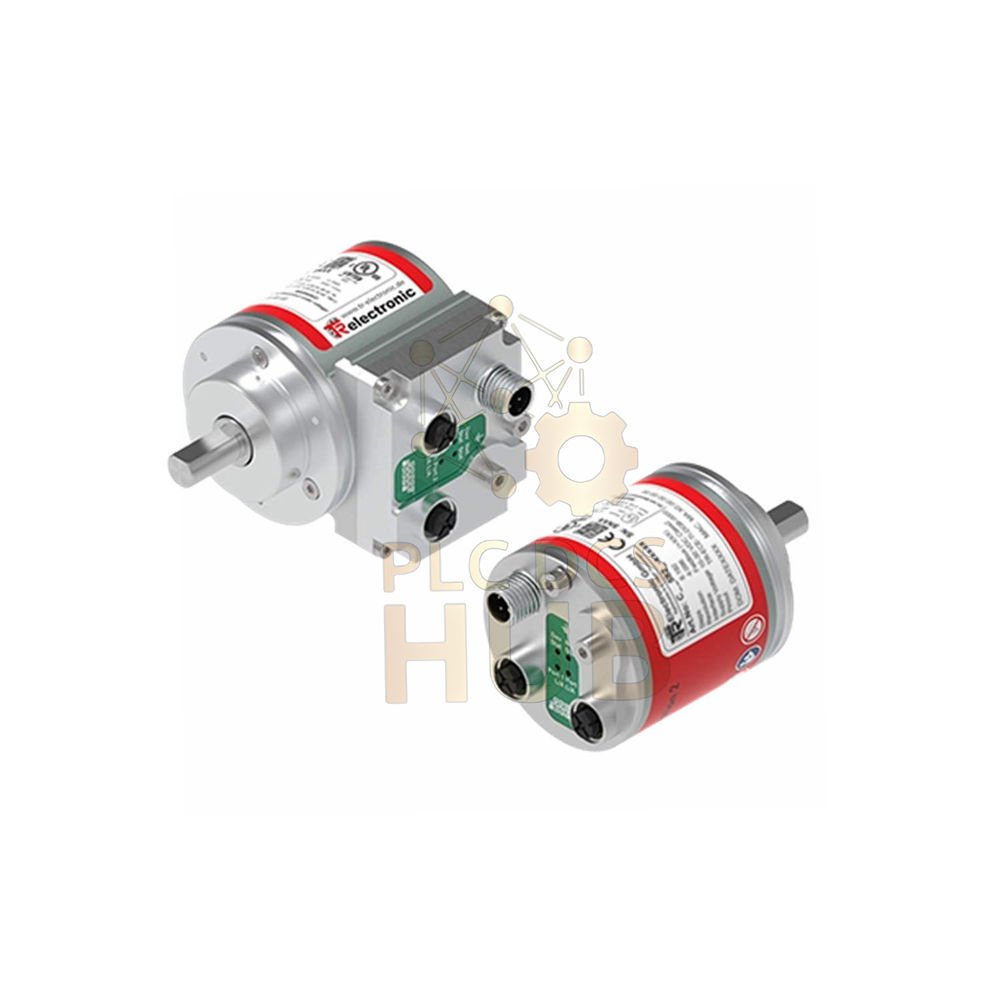

TR CEV58M-00441 Absolute Encoder – PROFINET IO, 33 Bit

Description Product Description The TR CEV58M-00441 is a high-precision absolute encoder. It supports PROFINET IO with IRT and RT real-time classes. This device delivers up to 33-bit total resolution. Use it for single-turn or multi-turn position feedback. The encoder works reliably in tough industrial environments. Technical Data – Sorted by Importance Brand & Model Brand: TR Model: CEV58M-00441 Series: CEV58M-PN Core Performance Total resolution: ≤33 Bit Steps per revolution: 8,192,000 (≤32768 programmable) Revolutions: 4,096,000 (≤256000 programmable) Output capacity: ≤30 Bit Type: Single-Turn and Multi-Turn Electrical Data Supply voltage: 11–27 VDC (nominal 24 VDC) Nominal current: 120 mA at no load Interface: PROFINET IO Coding: Binary Transmission rate: 100 MBit/s Cycle time: ≥1000 µs (IRT/RT) PROFINET Details PROFINET specification: V2.2 Conformance class: B and C Real-Time classes: Class 1 (RT), Class 2 (RT), Class 3 (IRT) Physical layer: Fast Ethernet (ISO/IEC 8802-3) Programming tool: Fieldbus-Device Mechanical Data Flange type: ZB36 Shaft type: 10FL/19.5 Shaft diameters: 6 mm, 8 mm, 10 mm, 12 mm, or 3/8 inch Connector type 1: 1x 4-pin M12 (axial) Connector type 2: 2x 4-pin M12, D-coded female Mating plug: not included Mass: 0.3 to 0.5 kg Moment of inertia: 2.5E-6 kg·m² Start-up torque at 20°C: 2 Ncm Angular acceleration: ≤10E 4 rad/s² Speed & Lifetime Max mechanical speed: ≤12,000 rpm Bearing life: ≥3.9E 10 revolutions Bearing life at 6000 rpm and 60°C: specified Shaft load (axial/radial): ≤50 N / ≤100 N (at flange 10 mm) Environmental Ratings Working temperature: -20°C to 70°C Storage temperature: -30°C to 80°C (dry) Relative humidity: ≤98%, non-condensing Protection class: IP65 Vibration resistance: ≤100 m/s² (sine 50–2000 Hz) Shock resistance: ≤1000 m/s² (half sine 11 ms) Immunity to disturbance: DIN EN 61000-6-2 Transient emissions: DIN EN 61000-6-3 Options & Identifiers ENC conformance class: C PN spec: 2.2 Velocity output: yes Pinout reference: TR-ECE-TI-DGB-0214 Drawing number: 04-CEV58M-M0274 Version: 000 Firmware: 4377F9 Installation Guide Mount the encoder using ZB36 flange. Do not exceed shaft load limits. Use axial M12 connectors for PROFINET cabling. Apply 11–27 VDC power supply with proper grounding. Keep operating temperature between -20°C and 70°C. Debugging & Maintenance Ease Read position data via any PROFINET scanner. Use standard Fieldbus-Device tool for parameter changes. No regular calibration needed. Check M12 connectors for tightness and corrosion. Compatibility Works with all PROFINET IO V2.2 controllers. Supports Conformance Class B and C devices. Compatible with IRT networks down to 1000 µs cycle time. Pairs with 3300 XL 11 mm Proximity Probes in same control cabinet. Certifications Meets IEC 61158 and IEC 61784-1 PROFINET certification for V2.2 EMC compliance: DIN EN 61000-6-2 and 6-3 Protection verified: IP65 Packing List 1 x TR CEV58M-00441 absolute encoder 1 x product manual (downloadable) Mating plugs are not included – order separately. Warranty & Shipping Warranty: 12 months from delivery date. Shipping carriers: FedEx, UPS, DHL with tracking. Typical Applications Servo motor positioning in packaging machines Wind turbine blade pitch control Robotic joint feedback with IRT real-time Crane and hoist multi-turn counting Printing press registration Diagnostic Capability Reads internal temperature and supply voltage. Detects shaft overspeed and bearing wear warnings. PROFINET alarms for communication loss. FAQ – Frequent Questions & Real Experience Q: Does this encoder need a battery to keep multi-turn data? A: No. It uses mechanical gearing. No battery required. Q: Can I reduce the resolution to match my PLC? A: Yes. Use the programming tool to adjust steps per revolution. Q from field service: What fails most often after 3 years? A from engineer: M12 connectors or shaft seals. Keep spares. Q: Does it work with Siemens S7-1500? A: Yes. Use PROFINET IRT mode. Set cycle time ≥1000 µs. Q about storage: How to store for 1 year? A: Keep in dry, static-free bag at -30°C to 80°C. Buying Guide – How to Choose the Right Absolute Encoder Pick CEV58M-00441 if you need PROFINET with IRT. Choose this model for total resolution up to 33 bits. Select IP65 when washdown or dust exists. For shaft diameter, match your coupling: 6/8/10/12 mm or 3/8 inch. Order M12 mating plugs separately to avoid delays. Buy one spare encoder for every 10 installed units. Still have a question? For technical help or bulk order: 86 158 8020 0923 (WhatsApp) Copyright © 2026 PLCDCS HUB Limited. All rights reserved. Original Source: https://plcdcshub.com/ Partner: Powergear X Automation Limited Oiltech Controls Limited
