ICS Triplex T9402 Digital Input Module | 0.924ms Scan, 16 Ch, Isolated

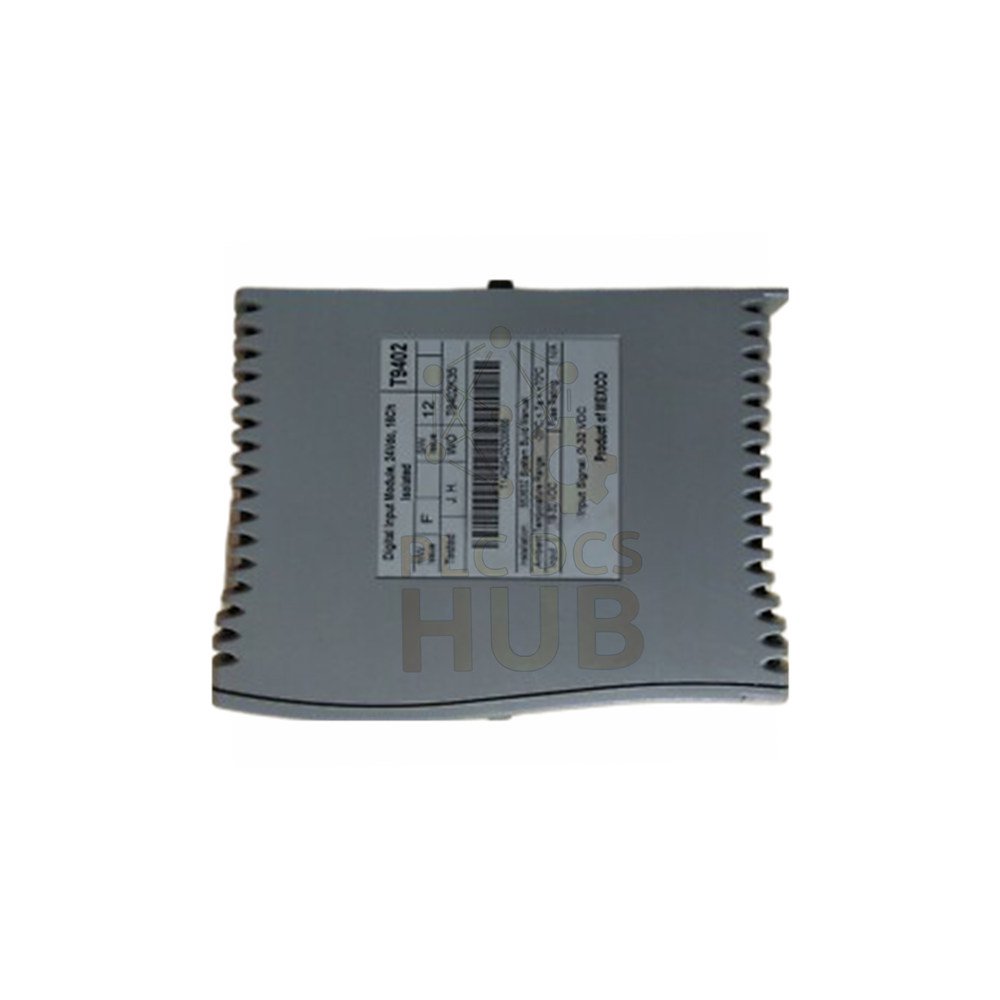

Description ICS Triplex T9402 – 16-Channel Digital Input Module ICS Triplex T9402 is a 16-channel isolated digital input module. It works at 24 Vdc. Use it for simplex, dual, or triple systems. Fast scan times ensure reliable data capture. Scan Times (Typical) Simplex mode: 0.924 ms Dual mode: 1.676 ms Triple mode: 2.453 ms Electrical Ratings Back-plane Voltage Range: 18 to 32 Vdc Maximum Current (Back-plane): 260 mA Input Voltage Range: 0 to 32 Vdc @ 6.5 mA Power Consumption: 4.0 W Heat Dissipation: 4.0 W (13.6 BTU/hr) Weight: 340 g (12 oz) Module Overview 16 isolated digital inputs 24 Vdc nominal voltage Simplex / Dual / Triple compatible Low power consumption – only 4W Lightweight design – 340 grams Key Benefits Fast scan times for critical logic Isolated channels prevent cross talk Wide voltage range (18-32 Vdc) Low heat output – saves cooling cost Professional FAQ Q: Can I mix T9402 with other ICS Triplex modules? A: Yes. It works with T8000 series controllers and I/O systems. Q: What happens if input voltage goes above 32V? A: Module may get damaged. Always stay within 18-32 Vdc range. Q: Does this module support hot swapping? A: Yes, T9402 supports hot replacement in trusted systems. Q: How do I check module health? A: Use front panel LEDs and system diagnostics via controller. Q: Is external power supply needed? A: No. Module draws power from back-plane (18-32 Vdc). Field Tips & Selection Guide Pro tip: Always use twisted pair wires for inputs to reduce noise. Spare strategy: Keep one T9402 as cold spare. It cuts downtime by hours. Selection advice: Choose simplex for non-critical monitoring. Use triple for safety systems. Install tip: Label each channel clearly. It helps fast troubleshooting. Warranty: 12 months from shipment. Covers factory defects only. Shipping: FedEx (express), UPS (ground/air), DHL (worldwide). Tracking included. Certifications & Compliance CE marked RoHS compliant Suitable for SIL 2 / SIL 3 systems (when used with Trusted TMR) Package Contents 1 x T9402 Digital Input Module Quick reference card Warranty sheet (12 months) Need help or bulk pricing? Contact us on WhatsApp: 86 158 8020 0923 Copyright © 2026 PLCDCS HUB Limited. All rights reserved. Original Source: https://plcdcshub.com/ Partner: Powergear X Automation Limited | Oiltech Controls Limited
